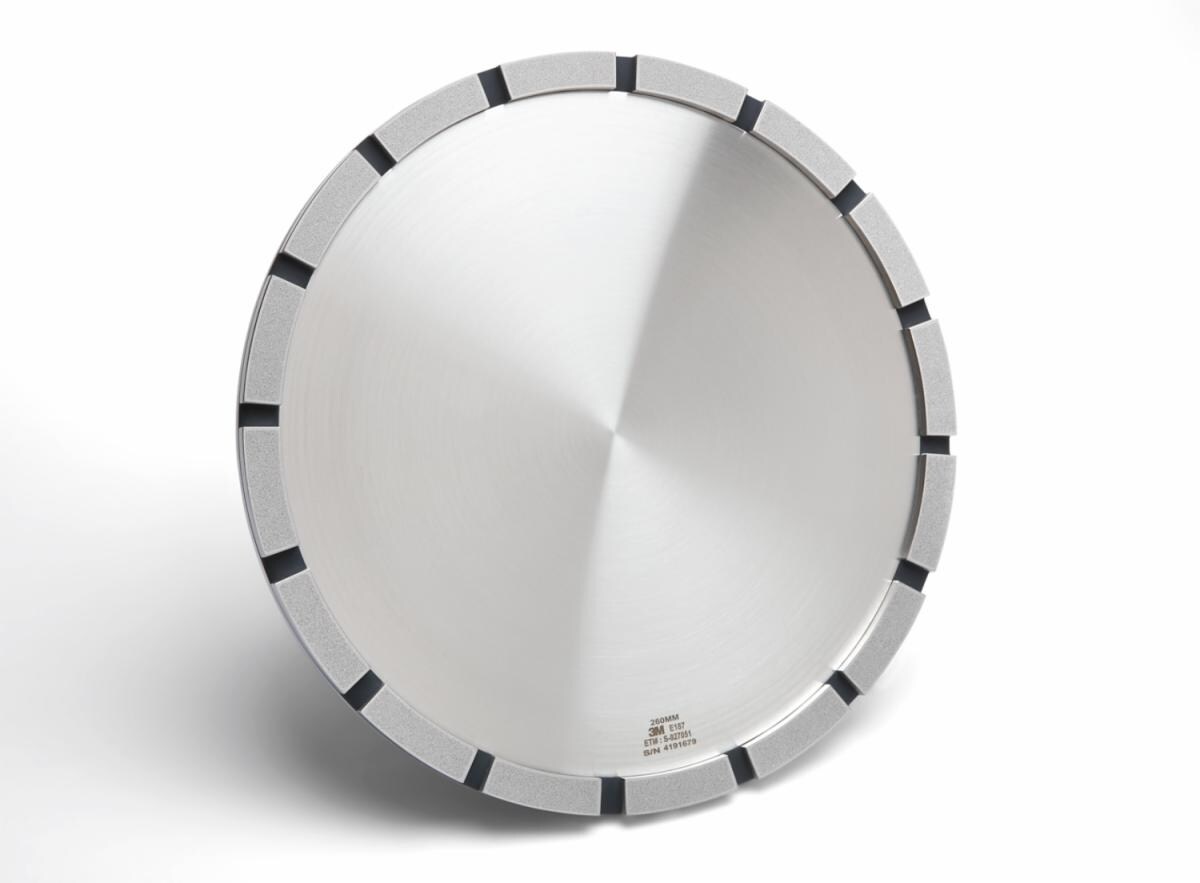

3M™ Diamond Pad Conditioner Ring E221, 260-mm dia

3M ID 60020008532
  • Helps to reduce the number of maintenance shutdowns, increasing the potential for lower cost of ownership
  • Optimized for extended pad and disk life
  • Diamonds secured with both chemical and mechanical bonds for great retention
  • Controlled diamond placement and protrusion for consistent and reliable performance through disc life
 More
View all details
Details

Highly engineered pad conditioners deliver reliable performance for critical semiconductor CMP applications. Utilizes Sintered Abrasive Technology for excellent diamond retention, with controlled diamond placement and protrusion.

  • Helps to reduce the number of maintenance shutdowns, increasing the potential for lower cost of ownership
  • Optimized for extended pad and disk life
  • Diamonds secured with both chemical and mechanical bonds for great retention
  • Controlled diamond placement and protrusion for consistent and reliable performance through disc life
Specifications
Abrasive Working Surface
Segmented
Aggressiveness
65-75
Applications
CMP
Carrier Colour
Grey
Carrier Format
Ring
Carrier Size
10.24 inch diameter
Carrier Substrate
304 SS
CMP Process
PMD/ILD
Diamond Size
251 um
Diamond Type
Type 4, semi-sharp
Manufacturing Location
United States
Mineral Type
Nickel based alloy with patterned diamond
Product Series
E221
